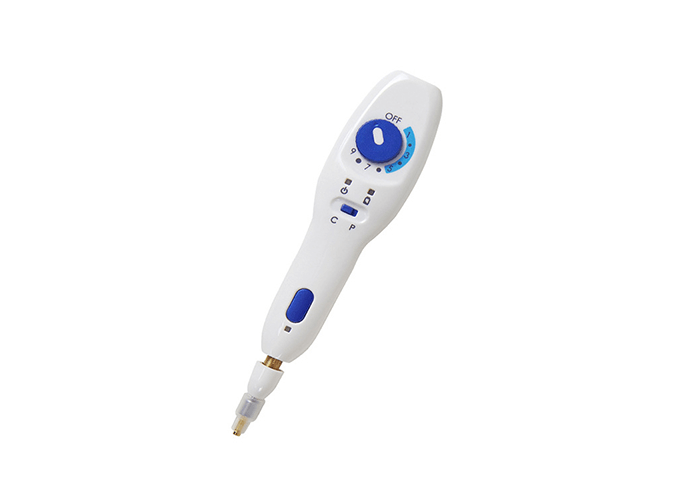

High quality plasma pen
High quality plasma pen since been developed in 2016, it is been through a long term. Previous machine battery not good enough, then we change it into best 967 battery. After selling a lot some clients feedback why there are two LED location but only one LED. That’s an issue so we make it into two LED and update PCB. The hard trigger as someone feedback not easy to press, our technique change it into soft trigger and avoid any stuck problem.
More information could chatting or leave message on specialicon.com
As machine long time operation easy to cause heating lead to machine burn. We spend at least 5 month to completely solve this problem. Until 20 July we all use 5V 2A output instant of 12V 1A. Circuit board already update. Each material been through strict check. Whole machine we have 48 times sampling checking. Most of it 100% sampling.
Our machine specification is different as any other plasma pen in the market. Even many supplier copy our device but technique could never copied.
High quality plasma pen specification
Model number: K29
Frequency: 48KHz, 68KHz’
Power: 1.48KW, 2.02KW
Output: 5V 2A
Output waveform: sine wave
Input: 110-240V, EURO, UK, AU and USA plug
Strict quality control ( part of record )
| High voltage package (Incoming material inspection100% check ) |
Primary | Secondary | QC | Date | ||||||||||||
| Ls(uH) (10.0±0.5) | Q (≥1.5000) | Ls(mH) (175.00±5.00) | Q (≥1.7500) | |||||||||||||
| brand: special-icon | brand: special-icon | |||||||||||||||
| PCB (Incoming material inspection ) (5% sampling) |
PCB no defect | PCB flat without deformation | PCB Line organization | □ | PCB code clearly | |||||||||||
| PCB L*W*T qualified | PCB Fixed hole position correct | PCB Consistent hole size | □ | PCB Card slot correct | ||||||||||||
| PCB (Patch inspection) (5% sampling) |
PCB no defect | PCB flat without deformation | SMD components no defect | □ | SMD component pasted on PCB | |||||||||||
| charger IC pasted on PCB | controller IC pasted on PCB | MOS diode pasted on PCB | □ | charger sensor pasted on PCB | ||||||||||||
| PCB Plugin inspection, Glue test (5% sample) |
High voltage package pasted on PCB | Illumination diode length collect | Fire index light pasted on PCB | □ | Fire index light pasted on PCB | |||||||||||
| Power level switf pasted on PC | voltage switf pasted on PCB | charger pasted on PCB | □ | buzzer pasted on PCB | ||||||||||||
| USB port pasted on PCB | BATT port pasted on PCB | USB-5V red line connect 22# Welding line all cover |
□ | USB-GND black line connect 22# Welding line all cover |
||||||||||||
| High voltage line-cutting feet | Plug-in diode-cutting feet | Power level 5 times test without stuck | ||||||||||||||
| High voltage line and PCB connective，clue 704RTV Silicone Rubber, Forward pressure line45°，assembly not easy to broken | USB-small PCB connective，glue 704RTV Silicone Rubber pressure line45°，assembly not easy to broken |
|||||||||||||||
Our Facebook page @gzspecialicon would regularly update plasma lift information as well.
How to place order and get training.
Plasma lift pen is professional medical machine. In usual we would only sell to beauty salon and aesthetic spa. Please chatting us or leave message so that our sales contact you. If you are beautician or doctor, our people sell you machine and offer training material. Otherwise we could recommend our cooperate training academy in local.
