ND yag laser tattoo removal diode laser 755nm and 1064nm

Non-invasive 532nm

Colorful tattoo remove

————-

Non-invasive 1064nm

For black and dark color tattoo

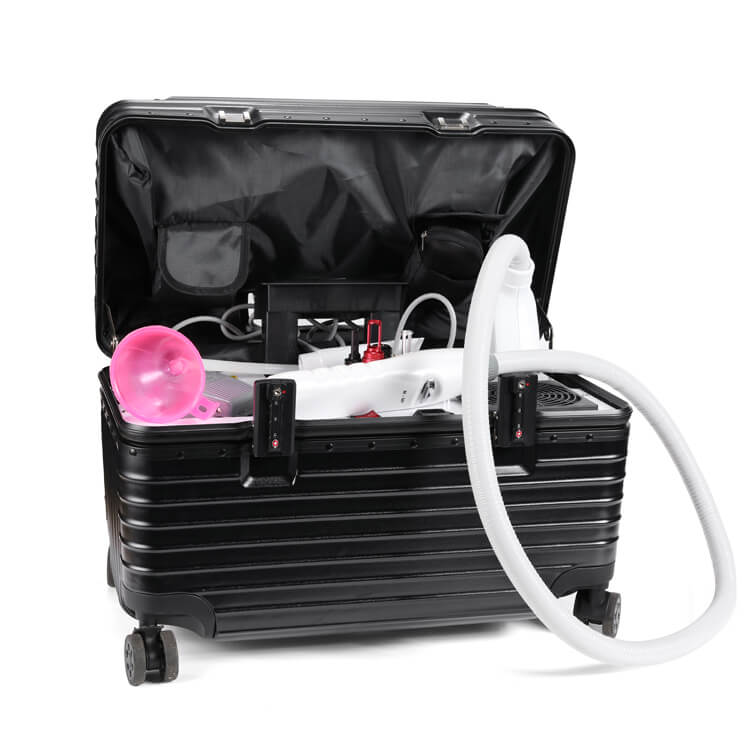

Packing list

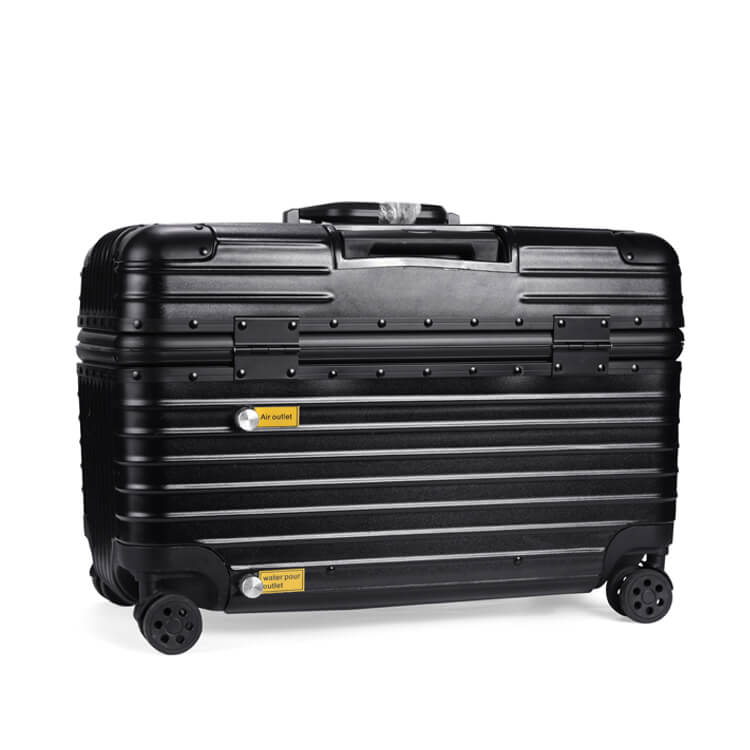

Main machine	1pc

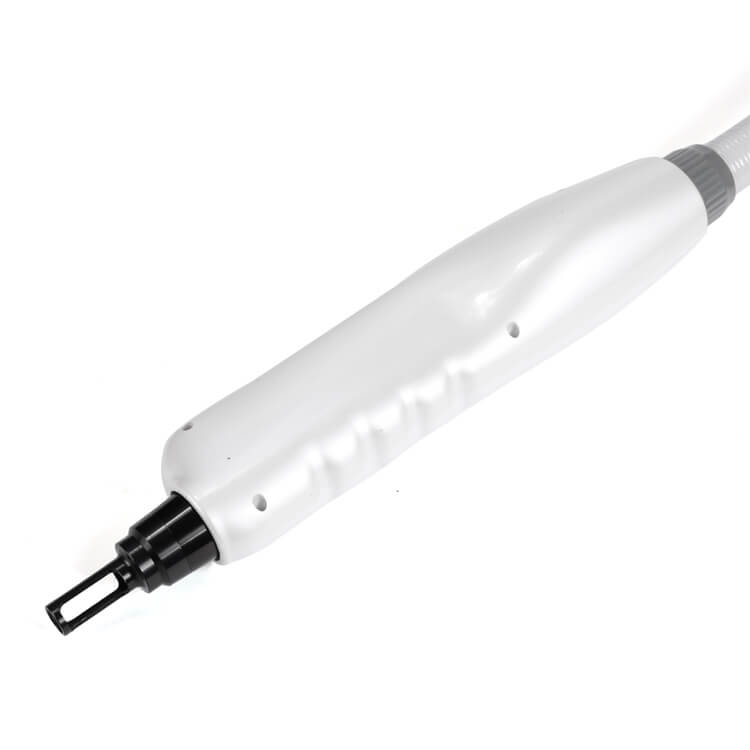

Handle	1pc
Cartridge	5pcs
Water Funnel	1pc
Padel	1pc
Carbon	1 bottle
Power connect system	1 set
Eyeballs protection glasses	1 set
Operators protection glasses	1 set
Instuction manual	1pc



Treatment reference

time   purpose	Treatment time	Treatment circle	Preparation
Eye linner tattoo	1 – 3 times	30 – 60 days	Eyebrow waxing, protect eyeballs
tattoo	3 – 5 times	30 – 60 days	In normal will a little bleeding on treatment area
pigment	2 – 3 times	15 – 30 days	In normal will a little bleeding on treatment area
spot	3 – 7 times	45 – 60 days	In normal will a little bleeding on treatment area
Carbon peeling	6 – 10 times	7 – 14 days	No skin damage

Energy setting reference

Treatment purpose	Energy(MJ)	Freqeuncy( MHz )	Cartridge distant to skin
Eyebrow tattoo	600 – 800	3-5	3-5cm
Eyelinner tattoo	600 – 800	3-5	3-5cm
Lips tattoo	600 – 800	3-5	3-5cm
pigment	800 – 1000	3-5	3-5cm
Body tattoo	1000 – 1200	4-6	3-5cm
spot	1000 – 1500	4-6	3-5cm
Carbon peeling	1000 – 1500	5-8	3-5cm

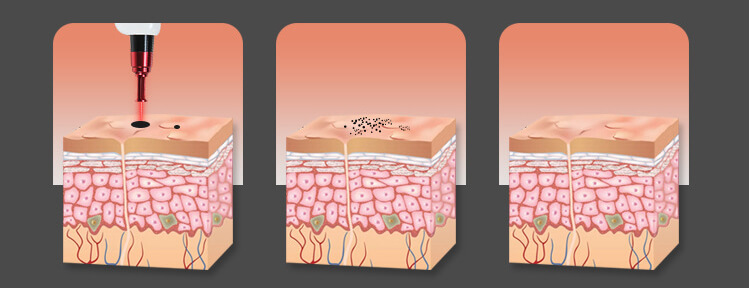

ND yag laser tattoo removal therapy

ND yag laser could soon crash pigmentation on skin in a short time (6nm). The pigment cluster thermal expansion and then crash after absorb heating energy from laser. Pigment on skin surface will be repelled by skin tissue, so one time treatment easy to clean, deeper pigment need a few times treatment.

Before after

Some treatment sample

Sample 1: black or blue eye linner tattoo remove

Clients should not open their eyes during operation. Doctors or beauticians selects right wavelength cartridge  (adjust the energy value) according to the depth of the pattern of the affected area, and slowly moves the laser handle from the normal skin near to target treatment area, so that the recipient has a psychological acceptance process. At this time, the light speed can be set to be 5HZ from the tip of the handle to the treatment area. The distance between the tip and skin could be 1-2 fingers for treatment. If color still appear, wait for about 5 minutes could make second times treatment. At this time, the energy 2-4 units increased, and the cartridge head is raised 2-3 finger distances from skin for better result. After a half month if still any pigment resist, we gonna make another treatment until it is all gone.

Sample 1: black or blue eye liner tattoo remove

Clients should not open their eyes during operation. Doctors or beauticians selects right wavelength cartridge  (adjust the energy value) according to the depth of the pattern of the affected area, and slowly moves the laser handle from the normal skin near to target treatment area, so that the recipient has a psychological acceptance process. At this time, the light speed can be set to be 5HZ from the tip of the handle to the treatment area. The distance between the tip and skin could be 1-2 fingers for treatment. If color still appear, wait for about 5 minutes could make second times treatment. At this time, the energy 2-4 units increased, and the cartridge head is raised 2-3 finger distances from skin for better result. After a half month if still any pigment resist, we gonna make another treatment until it is all gone.

Sample 2: eyebrow tattoo remove

Setting output speed as 3Hz, energy setting refer to above sheet. Firstly treat by 1064nm cartridge first, keep 5-8cm distand between cartridge and skin; and then using 532nm do to second treatment. Coffee color and brown color is mixing color, in normal need at least twice treatment, 45-90 days as one circle

Sample 3: Eyeliner tattoo remove

Speed output set to 5Hz, adjusting output energy to lowest (critical light output point). 5-8cm distand bettween skin and cartridge, based on the bright spot! The operator must use thick medical gauze or eyelid to tightly protect the eyeball. Starting by down eyeliner, client must CLOSE THE EYES, try the best keep eyeballs upper. Doctor and beautician pull open eyelids with index and middle fingers treat by 5Hz.

Next step do upper eyeliner treatment, keep EYES CLOSE and eyeball forward down, press gauze to protect eyes then do treatment, 5Hz speed.

Sample 4: Lips tattoo remove

Setting light speed as 5Hz, setting right energy as above sheet we given. Distand bettwen skin and cartridge about 5-6 cm. Black, coffee, red and brown color removing using 1064nm cartridge first, then using 532nm cartridge do second times treatment. If removing lighter color use 532nm directly.

PS: lips tattoo remove should be down after a half years since did tattoo beauty. 45-60 days as one treatment circle.

Sample 5: tattoo remove

Setting light speed as 3Hz/5Hz, distant between cartridge and skin about 7-10cm, using as higher energy as possible until slightly bleeding. Blue and red color mostly use 1064nm, if it is in red or coffee color would select 532nm cartridge, 45-90 days as one circle until tattoo all gone.

Sample 6: pigment remove

Setting light output as 3Hz/5Hz, gap on cartridge and skin about 10cm, using as higher energy as possible until a little bleeding. Red color using 532nm cartridge, the rest treatment all recommend 1064nm. If it is very deep color and no reaction to 1064nm, then changing to 532nm. 15-30 days as one circle.

Sample 7: spot remove

Setting light speed as 3Hz/5Hz, 10cm between skin and cartridge, using as high energy as possible to do treatment until it is a little bleeding. Removing 532nm cartridge for red color spot, black mole could use 1064nm. 45-90 days as one treatment.

Setting output speed as 3Hz, energy setting refer to above sheet. Firstly treat by 1064nm cartridge first, keep 5-8cm distant between cartridge and skin; and then using 532nm do to second treatment. Coffee color and brown color is mixing color, in normal need at least twice treatment, 45-90 days as one circle.
