plasma pen PCB similar as the brain to the human being. Transformer is one of the most important accessories on PCB. Input from different countries range 110-240V, after transfering become 5V 2A output.
How to offer such high energy under weak output? That is the main technique of plasma. In past many years plasma only apply on medical surgery. It is easy to cut skin out but not cause crazy bleeding. On the other hand could help for wound recure.
After a few years development and change the energy to make it widly use in beauty area. Firstly it is use sine wave output, because the PCB upgrade things change to square wave before. However sine wave get more stable energy and shooting, it is a final version.
Follow our Facebook page post more information about plasma pen @gzspecialicon

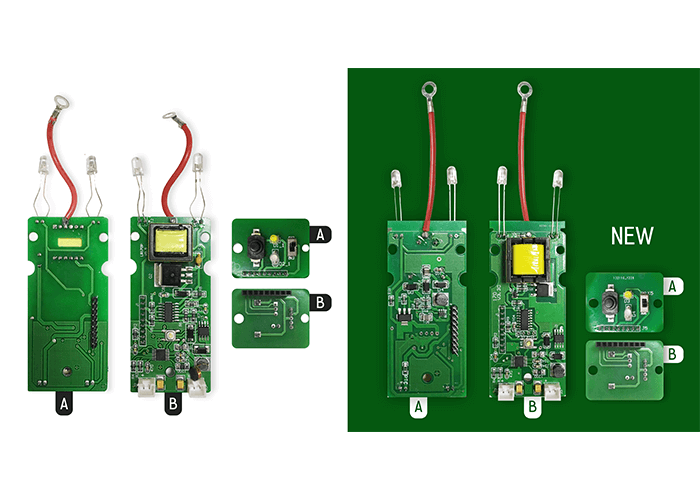

Plasma pen PCB
- transformer: control input 110V – 240V become 5V 2A. Can not influence any side components.
- Trigger: V1.0 use hard trigger and easy to stuck, so on the 2rn generation upgrade already change to soft one to increase touching feel and quality.
- Battery: Best 967 battery with MSDS certificate ensure long term use. One time charging could keep about 3-7 days normal use.
Specialicon.com is professional beauty machine supplier, your question could be answer here.
Specification as below:
Item No.: K9
Freqency: 48KHz, 68KHz
Power: 1.48KW, 2.02KW
Output waveform: sine wave
Benefits
Plexr pen widly use on wrinkle remove, eyelid, spot remove, neoplasm remove and stretch removal. Only medical spa could use it, do not support home use.
3rd generation plasma pen advantage
We are the first plasma pen developer and manufacturer in China.
At the begging maglev pen do not good at distributors resell and training so make the empty logo, The first aluminum box package using our previous particle counter package cause something material left. Then using giftbox to reduce factory cost. All upgrade basic on plasma pen pcb change
Working principle from 1st one LED light to 2nd generation, main change on the plasma pen PCB board. Until now V3.0 do not publish PCB any more.
